How to Do a Load Takedown by Hand (UK Values)

21 August 2025 · 11 min read

structural engineeringmanual calculationfoundationsload takedown
Hand drawing on a plan with a scale rule and a roll of paper

Trace roof, floor and wall loads down to the foundation by hand, with typical UK kN/m² values, a line-load method and a bearing check at the bottom.

Try a worked exampleIn the app, no account needed

To do a load takedown by hand, mark up the plan with span directions and wall references, turn each area load (kN/m²) into a line load (kN/m) by multiplying it by the loaded width, add each wall's own weight, and keep a running total from the roof down to the footing. For the two-storey house below, that gives about 45 kN/m at the base of the front wall and 52 kN/m under the internal wall, which a 600 mm strip on firm clay can broadly carry.

You do not need analysis software to get there. A pen, a printed plan and one sheet of A4 are enough to test a scheme, confirm loaded widths and get foundation loads you can defend. This article works through the whole process with the values a UK engineer would use.

What is a load takedown?

A load takedown traces every gravity load in a building down to the ground. You start at the roof and work down through beams, walls and columns until the loads reach the foundations.

It has three steps:

  1. Assess the load paths. Decide which element supports which load: floor to joists, joists to walls, walls to foundations.
  2. Work out the loaded widths. The loaded width is the strip of floor or roof that a wall or beam supports. It turns an area load into a line load.
  3. Add the loads down the building. Combine the loads from each level with self-weight to get the load at the base of each wall, column or pier.

If the idea of a load path is new, the introduction to load takedown covers it in plain terms first.

How do you mark up the plan?

Print the architect's plan and draw on it. Mark the span directions first, then give every supporting wall and beam a reference, then shade the strip that loads the wall you are checking. This markup is the core of the calculation. Once the geometry is on paper, the arithmetic is simple.

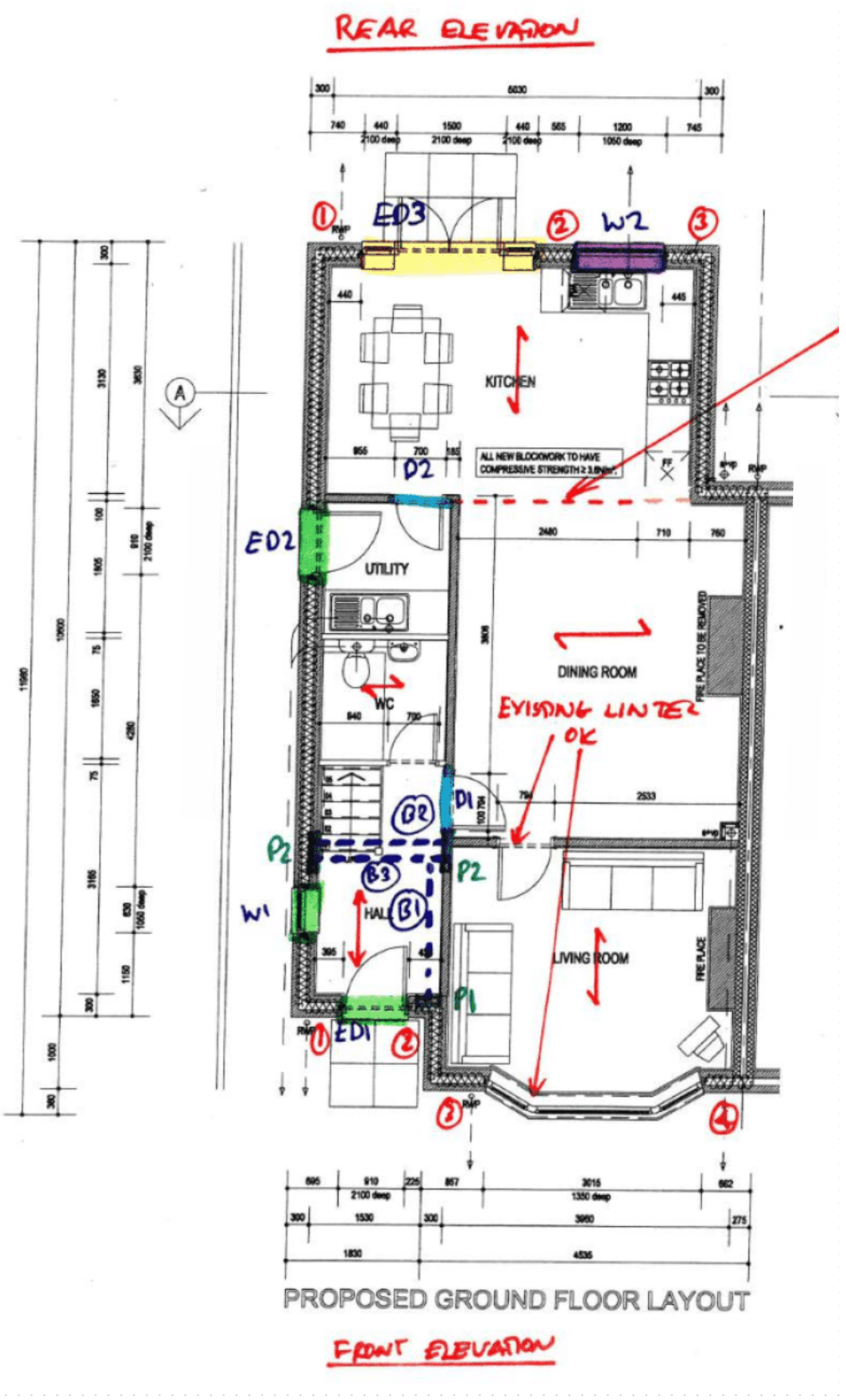

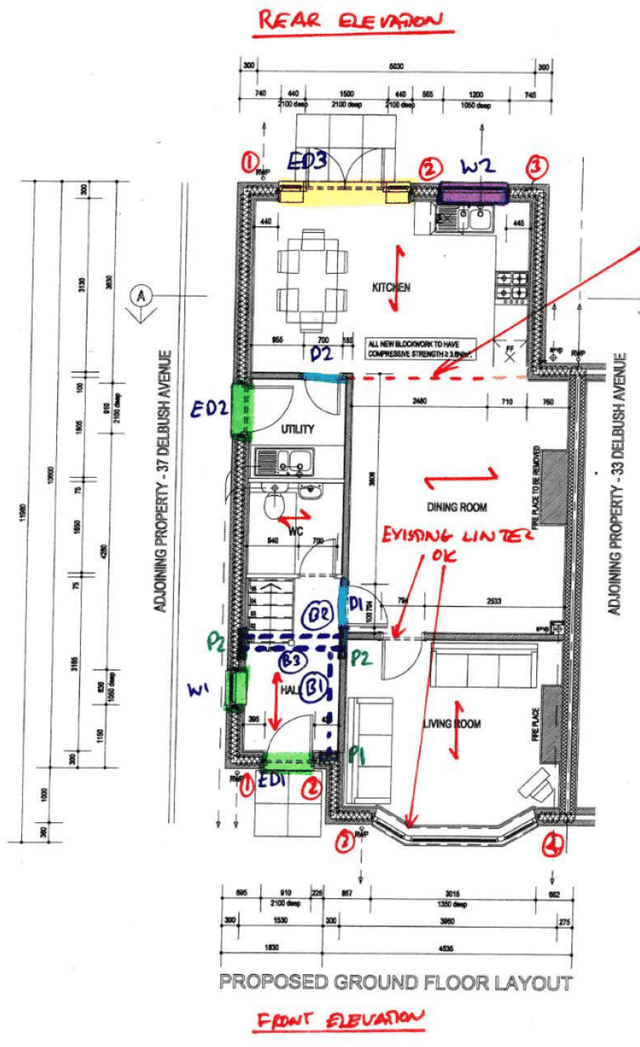

An architect's ground floor layout marked up by hand: load-bearing masonry highlighted, wall references W1 to W5, beam B1 over the 3500 mm opening in W3, span arrows of 6.0 m and 3.0 m, and the 3.0 m tributary strip loading W1
The markup: span directions first, then a reference on every wall, then the strip that loads the wall you are checking.

Three things should be on every markup:

  • A span direction on every floor zone. A one-way floor only loads the two walls it bears on. W4 and W5 run parallel to the joists and take almost no floor load. This is easy to miss when you work from a schedule instead of a drawing. One-way spans explains how to tell which way a floor spans.
  • A reference on every supporting element. W1, W2, B1 and so on. A checker cannot follow numbers that have no reference.
  • The tributary strip, shaded. For a simply supported floor it is half the span each side of the wall. Tributary regions covers the geometry, and loaded width covers cantilevers and continuous spans.

How to read drawings for a load takedown explains where to find this information on an architect's set.

What loads should you use for a UK house?

These characteristic values give a defensible first-pass number for UK housing. They are typical values; check them with a competent engineer and against the actual build-up before they go into a design. Fuller tables are in typical UK floor and roof loads and brick and block wall self-weights.

ElementPermanent, gkImposed, qk
Pitched roof, concrete interlocking tiles, on trusses, on plan0.7 to 1.1 kN/m²0.6 kN/m² up to 30° pitch, less above (roof with no access)
Timber joisted floor0.5 to 0.8 kN/m²1.5 kN/m² + 0.5 to 0.8 kN/m² partitions
Concrete floor with screed and finishes (beam and block to 150 mm solid slab)3.5 to 5.5 kN/m²1.5 kN/m² + 0.5 to 0.8 kN/m² partitions
Cavity wall, brick and block, plasteredabout 3.5 kN/m² of elevationnone
100 mm dense blockwork, plastered both sidesabout 2.5 kN/m² of elevationnone

The 1.5 kN/m² floor value is the UK National Annex figure for domestic floors (category A in BS EN 1991-1-1). The partition allowance covers lightweight stud walls that could be moved. The 0.6 kN/m² roof value is not added to snow: use whichever is larger, and check the snow load for the site on high or exposed ground.

The example uses a concrete first floor at 5.0 kN/m² permanent + 2.0 kN/m² imposed = 7.0 kN/m². The 2.0 is 1.5 for the floor plus 0.5 for light partitions. The roof is 0.9 + 0.6 = 1.5 kN/m², taking the full 0.6 kN/m² imposed load, which is conservative for a pitch above 30°.

How do you turn an area load into a line load?

Pick one wall and one floor. Every takedown is this one step, repeated.

The front zone spans 6.0 m between W1 and the internal wall W3. The floor is simply supported, so half of it is carried by each wall:

Loaded width to W1 = span / 2 = 6.0 / 2 = 3.0 m
Floor area load    = 5.0 + 2.0 = 7.0 kN/m²
Floor line load    = 3.0 × 7.0 = 21.0 kN/m
Plan of an 8.0 m by 9.0 m house: joists span 6.0 m from W1 to W3 and 3.0 m from W3 to W2, a shaded 3.0 m strip loads W1 at 3.0 × 7.0 = 21 kN/m, W3 picks up 1.5 + 3.0 = 4.5 m, and beam B1 spans a 3.5 m opening in W3
Half the span each side: the 6.0 m front span gives W1 a 3.0 m strip, and W3 picks up half of both spans, 4.5 m in total.

In this example the roof is also taken to span 6.0 m onto W3, with a strut or purlin bearing on the internal wall. On that basis it adds:

Roof line load to W1 = 3.0 × 1.5 = 4.5 kN/m

Write three assumptions on the sheet: the floor is simply supported, no imposed load reduction has been taken, and the roof bears on W3. The first two are conservative. The third needs checking, and the effect of getting it wrong is shown further down.

Free load takedown spreadsheet

SLS and ULS line loads for every wall, a UK load library and a footing width guide. Free Excel file, no account.

Get free spreadsheet

How do you work down the storeys?

Floor and roof loads alone will flatter the foundation. On a two-storey wall, masonry self-weight is often a third or more of the total at the base, and it is the part people forget.

W1 is a cavity wall, about 5.4 m high from the eaves to the underside of the ground floor (two storeys of 2.7 m in this example). The ground floor slab bears directly on the ground, so it carries none of its load into the walls and drops out of the takedown.

Wall self-weight    = 3.5 × 5.4 = 18.9, say 19.0 kN/m
Total at base of W1 = 4.5 (roof) + 21.0 (floor) + 19.0 (wall) = 44.5, say 45 kN/m

Now do the internal wall, W3. It carries floor from both sides, so its loaded width is 6.0 / 2 + 3.0 / 2 = 4.5 m. It is a 100 mm dense block wall over the same height:

Floor to W3         = 4.5 × 7.0 = 31.5 kN/m
Roof to W3          = 4.5 × 1.5 = 6.8 kN/m
Wall self-weight    = 2.5 × 5.4 = 13.5 kN/m
Total at base of W3 = 31.5 + 6.8 + 13.5 = 51.8, say 52 kN/m
Section through the house with running totals: W1 takes roof 4.5, plus floor 21.0 gives 25.5, plus wall 19.0 gives 44.5, about 45 kN/m; W3 takes roof 6.8, plus floor 31.5 gives 38.3, plus wall 13.5 gives 51.8, about 52 kN/m; the ground slab bears on the soil and is not in the takedown
Each level adds to the total carried down from the level above, and the wall's own weight goes on last.

The internal wall carries more than the external wall. That is the usual result for this layout, and it is why internal walls often need a wider footing than the perimeter. A takedown that only looks at the external walls will miss it.

Check the roof assumption. Trussed rafters usually span the full 9.0 m from W1 to W2 without touching W3. In that case:

W3 total = 31.5 (floor) + 13.5 (wall) = 45.0 kN/m
W1 roof  = (9.0 / 2) × 1.5 = 6.75 kN/m
W1 total = 6.75 + 21.0 + 19.0 = 46.75, say 47 kN/m

Both walls then sit at about 45 to 47 kN/m. Confirm how the roof is framed before you rely on either set of figures.

A hand calculation sheet for wall W1: floor 21.0, roof 4.5 and wall 19 kN/m giving 45 kN/m at the base, factored to 61 kN/m at ULS, and a bearing check of 95 kN/m² under a 600 mm strip footing, with the assumptions listed
The whole calculation for W1 fits on one side of A4, with the assumptions written next to the arithmetic.

Do you use factored or unfactored loads?

The totals above are characteristic (unfactored) loads. Use them for a bearing pressure check against a presumed allowable pressure. To design the masonry or the footing to the Eurocodes, use design loads factored to BS EN 1990: 1.35 × permanent + 1.5 × imposed. Split W1 into its two parts first:

Permanent, Gk = 2.7 (roof) + 15.0 (floor) + 19.0 (wall) = 36.7 kN/m
Imposed, Qk   = 1.8 (roof) + 6.0 (floor)                = 7.8 kN/m
Check: 36.7 + 7.8 = 44.5 kN/m characteristic

ULS = 1.35 × 36.7 + 1.5 × 7.8 = 49.5 + 11.7 = 61.2, say 61 kN/m

Keep the two sets of numbers in separate, labelled columns. Mixing factored and unfactored loads in one column is the most common error in a hand takedown, and a checker cannot see it. Characteristic vs design loads explains the difference in full.

Can the ground take it?

The line load only matters once you compare it with the ground. Assume a 600 mm wide strip footing under W1:

Bearing pressure from the wall = 45 / 0.6 = 75 kN/m²
Footing and backfill, about 1 m deep at 20 kN/m³ = 20 kN/m²
Total (gross) bearing pressure = 75 + 20 = 95 kN/m²

This is the gross pressure: everything down to the underside of the footing, including the footing and its backfill, compared with a gross allowable value. Foundation load from a wall works out the substructure in detail.

A presumed allowable bearing pressure for firm clay is about 100 to 150 kN/m². 95 kN/m² is inside that, but close to the lower end, so a 600 mm strip is a fair starting point if the clay is confirmed as firm. Do the same for W3:

Bearing pressure = 52 / 0.6 + 20 = 86.7 + 20 = 107 kN/m²

That is above the lower end of the range. It tells you to widen the internal footing or wait for the ground investigation before you commit. The foundation load worked example takes this into footing sizing.

Two divisions turn a set of line loads into a foundation decision. That is the purpose of the exercise.

When does a hand takedown stop being reliable?

The method above assumes one-way spans, simple supports, and walls that stack directly on top of each other down to the ground. Real buildings often depart from that. These are the cases to watch for.

Two-way spanning slabs. When a concrete slab panel is less than about twice as long as it is wide, it spans both ways. The areas each wall supports become trapezoids and triangles instead of rectangles. You can split the panel with 45 degree lines from the corners for a first-pass number, but it is easy to get wrong on an irregular panel. If you use the one-way assumption anyway, one pair of walls is overloaded and the other underloaded, so state which way you have erred. Two-way floor loads shows the method.

Walls that do not stack. A wall that stops at first floor and stands on a beam or on the floor joists breaks the vertical chain. Its load is supported by the beam or joists and distributed sideways to their supports. Below that level the load path changes: beam reactions become point loads, and the piers or posts under them need pad footings. Offset walls covers this case.

Point loads from beams. B1 spans the 3.5 m opening in W3 and supports the same 4.5 m loaded width the wall would have:

Load on B1        = 31.5 (floor) + 6.8 (roof) = 38.3 kN/m
Reaction each end = 38.3 × 3.5 / 2 = 67 kN

That 67 kN is floor and roof only. The masonry above the opening also goes on the beam, either the whole panel or, if you are relying on arching, the triangle above the opening. So the real reaction is higher. It arrives as a point load on a short pier, not as a line load. If you spread it along the wall, as a line-load-only takedown does, you understate the load on the pier and its foundation by a wide margin. Steel post point loads and beam to foundation follow a reaction like this down to the ground.

Continuity over supports. Joists and slabs often run over internal walls instead of stopping on them. Continuity increases the reaction at the internal support and reduces it at the ends. For two equal spans the internal reaction goes up by 25 per cent. If an internal wall is already marginal, allow for this instead of using the simple half-span split.

Loads a gravity takedown leaves out. Wind uplift on light roofs, horizontal loads from wind and notional loads, and temporary loads during construction do not appear in a takedown, and any of them can govern.

When several of these show up on the same plan, stop calculating the whole building by hand. Use hand calculations to check the key elements instead.

How do you keep a hand takedown checkable?

The arithmetic is the easy part. Keeping track of thirty walls across three levels, each with its own loaded width, is the hard part, and it is where hand takedowns go wrong without anyone noticing. Once you are repeating the same three multiplications forty times, move them into a structured template such as the free load takedown spreadsheet, so that the loaded widths and load cases sit in one place.

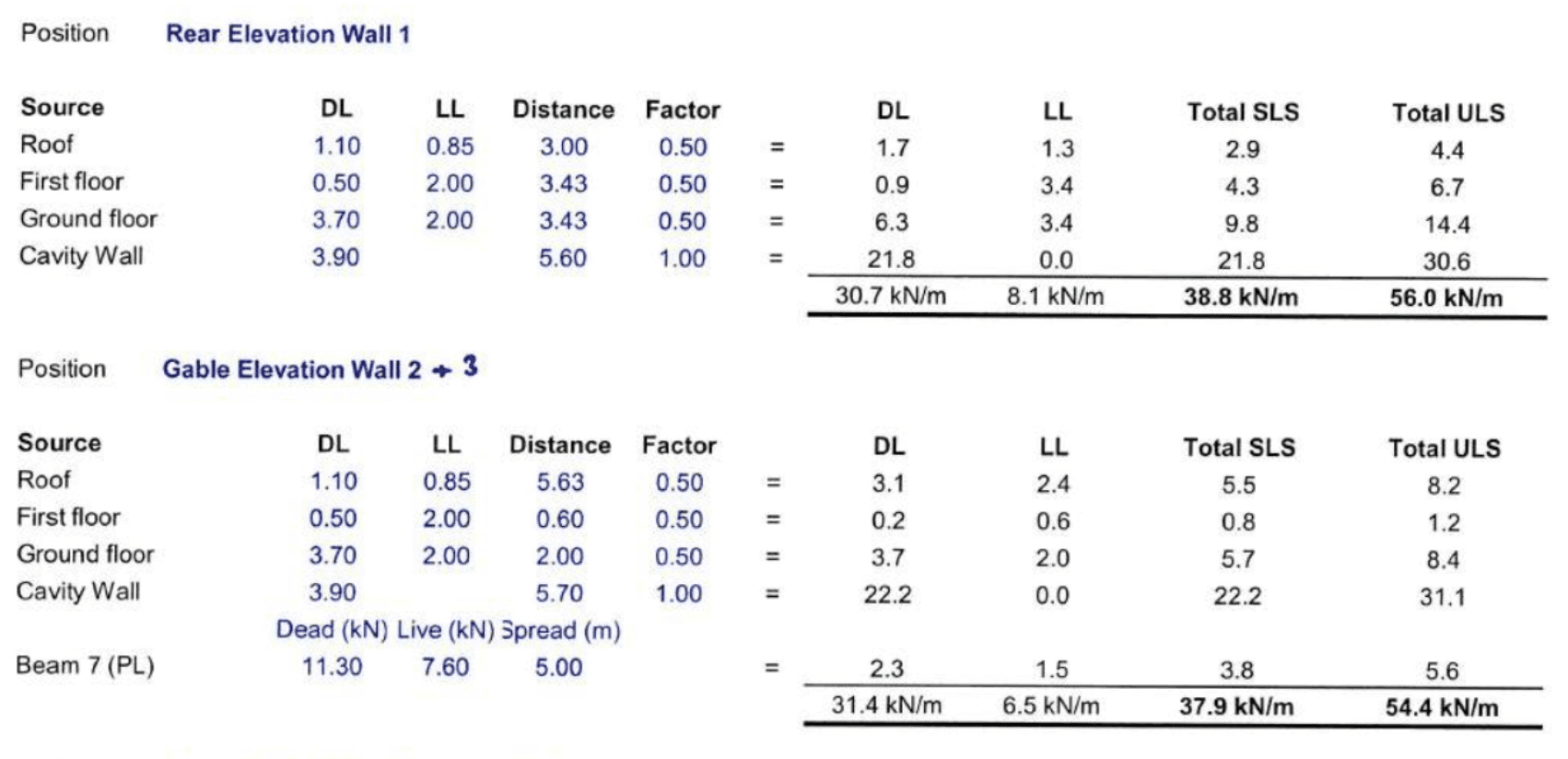

A load takedown spreadsheet listing roof, floor and wall self-weight rows for each wall, with dead, imposed, SLS and ULS line loads in separate columns
A structured template keeps each wall's area loads, spans and factors in one table, with unfactored and factored totals side by side.

Habits that make a takedown easy to check:

  • Record spans, area loads and assumptions next to the results, not on a separate sheet.
  • Round sensibly: 132.7 kN/m becomes 133 kN/m. Extra decimal places suggest a precision the inputs do not have.
  • Keep factored and unfactored figures in separate, labelled columns.
  • Note which walls you assumed carry nothing, and why. Those are the assumptions most likely to be overturned.

For the same method followed through a full house, from plan markup to foundation loads, see the load takedown worked example. To review someone else's numbers, see how to check a load takedown.

What about bigger buildings?

Hand takedown works well for one wall and for one house. It becomes slow for a block of flats, where a change to the floor build-up means recalculating everything. At that point software can hold the geometry and re-run the takedown when the plan changes, while you keep the judgement: span directions, load values, and which assumptions are conservative.

LoadTakedown cavity walls cut in 3D beside the stress diagrams for the outer and inner leaf of one wall, each with its own load on the foundation
The same walk down the wall, done for every wall at once and leaf by leaf. The arithmetic is identical, and it re-runs when the plan changes.
